C&I Energy Bank Energy Storage System

(with PCS)

l IP54 Can be used Outdoors

l All New Grade A Cell LFP Battery

l 6000 Cycle Life

l On Grid/Off Grid

l Real-time Remote Monitoring

l High-class of safety with build-in EMS protection

Download PDF

Online Support

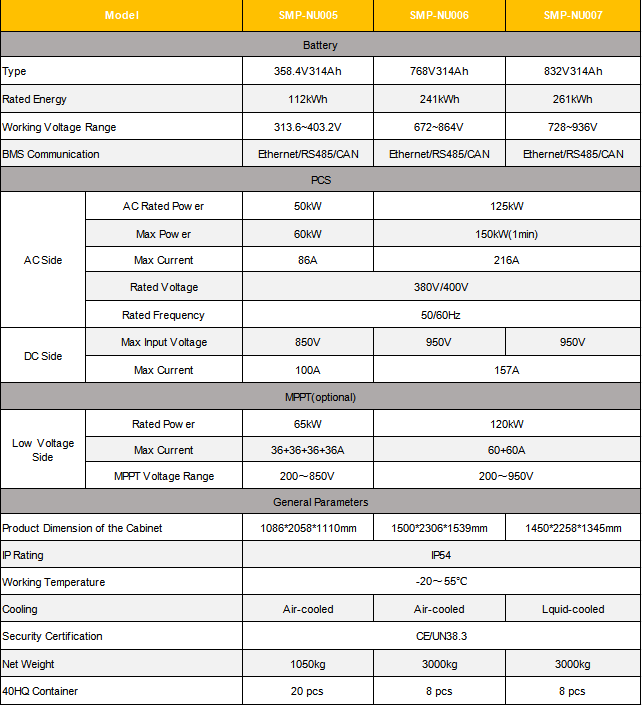

TECHNICAL SPECIFICATION

Product Model

Function Type

50KW

Main Specifications

60KW

Main Specifications

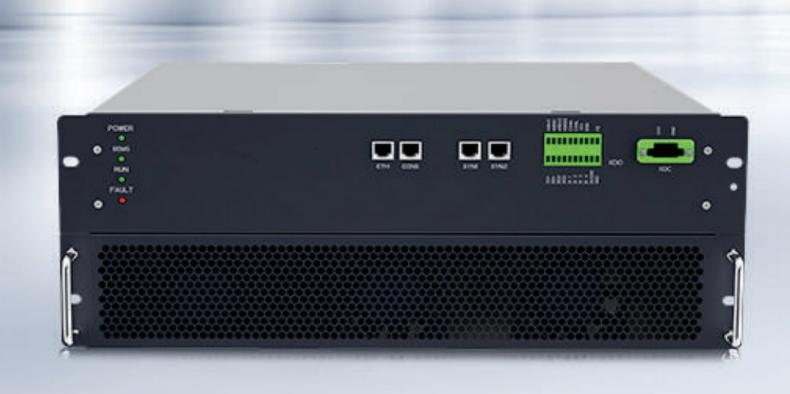

MPPT Module

(Air Cooling)

DC/DC Supports

Grid-Connected

Bidirectional Control

Rated Voltage: 350VDC
Rated Current: 75A
DC Input Voltage Range: 150–1000VDC
DC Output Voltage Range: 680–950VDC
Conversion Efficiency: ≥98%
Operating Temperature: -40°C to +60°C
Operating Altitude: ≤4000m
Communication Interface: RS485 / CAN
Dimensions: 444×330×550mm
Protection Level: IP20
Cooling Method: Air Cooling
Noise Level: <70dB

Rated Voltage: 350VDC
Rated Current: 90A
DC Input Voltage Range: 150–1000VDC
DC Output Voltage Range: 680–950VDC
Conversion Efficiency: ≥98%
Operating Temperature: -40°C to +60°C
Operating Altitude: ≤4000m
Communication Interface: RS485 / CAN
Dimensions: 444×330×550mm
Protection Level: IP20
Cooling Method: Air Cooling
Noise Level: <70dB


Product Model

Function Type

200KW

Main Specifications

250KW

Main Specifications

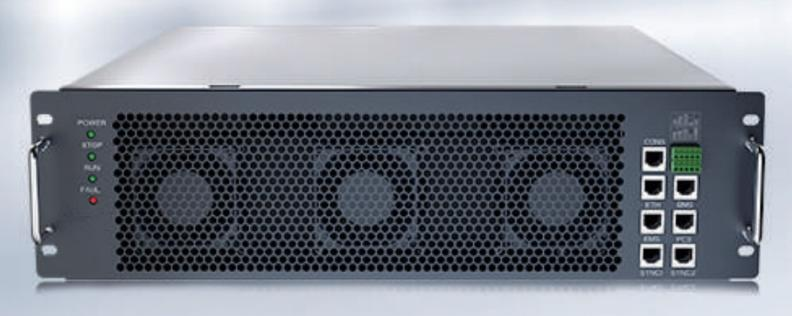

STS Switching Module

(Air Cooling)

Supports

Grid-Connection

Rated Voltage: 200VDC
Rated Current: 304A
AC Voltage: 380–400VAC
Switching Efficiency: 99.5%
Operating Temperature: -40°C to +60°C
Operating Altitude: <4000m
Communication Interface: RS485 / CAN
Dimensions: 444×175×550mm
Protection Level: IP20
Cooling Method: Air Cooling
Noise Level: <70dB
Switching Time: <20ms

Rated Voltage: 200VDC
Rated Current: 380A
AC Voltage: 380–400VAC
Switching Efficiency: 99.5%
Operating Temperature: -40°C to +60°C
Operating Altitude: <4000m
Communication Interface: RS485 / CAN
Dimensions: 444×175×550mm
Protection Level: IP20
Cooling Method: Air Cooling
Noise Level: <70dB
Switching Time: <20ms
